Our Alloy pipe bender are true all-rounders. The machines from our HIGH PERFORMANCE range can bend tubes with a maximum diameter of 273 millimetres made from all standard materials such as aluminium, titanium,alloy, steel and stainless steel. Thanks to the intuitive CNC control, they are suitable for universal use and especially user-friendly. The material-friendly cold bending process used by our single-stack tube bending machines ensures particularly fast and energy-efficient manufacturing and has virtually no impact on the structural condition of the materials. This makes it possible to produce even three-dimensional tube systems in short cycle times without a single weld. We also offer a sophisticated, modularly configurable range of accessories for every system.

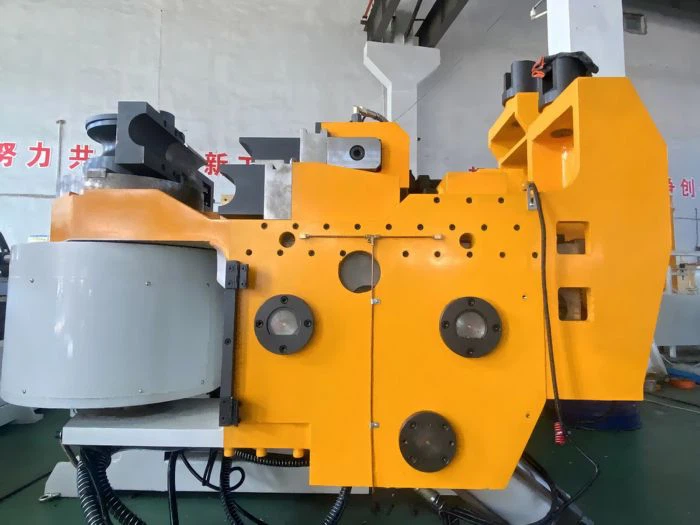

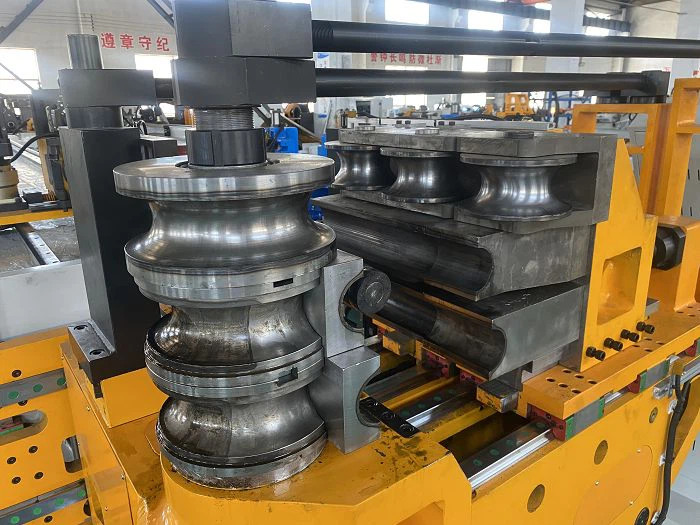

● Fully hydraulic movement on clamp die,pressure die and mandrel.
● Available pipe shape: Round,Square,Rectangle,Oval,Solid Bar,other profiles
Available pipe material: steel, stainless, aluminum, titanium brass and so on.
● Equiped with Japan Omron encoder ensures the accuracy and stability of bending.

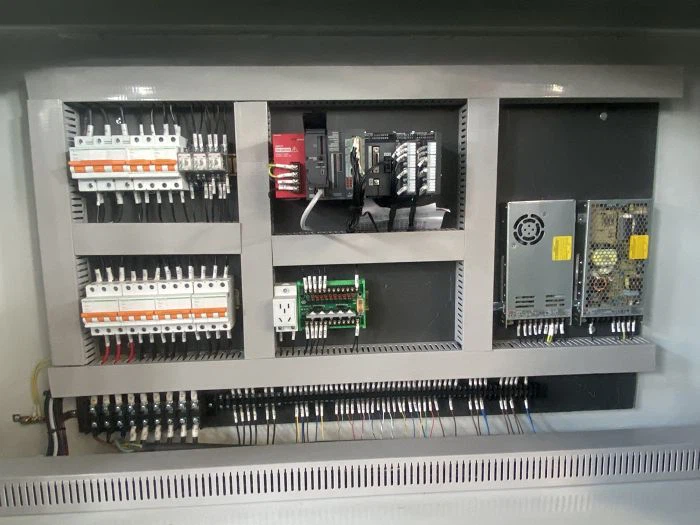

*All electrical components of our alloy pipe bender are sourced from world-renowned brands,the cabinet conform to IP65.

*Conform CE and UL standard

*With automatic machine lubrication system

*With Automatic mandrel lubrication system.

remarks:

1.Due to the continuous improvement on design, the specifications above are subject to change without notice.

2.Please contact sales to recommend you the suitable model with the latest specification detail

Hot Tags: alloy pipe bender, China alloy pipe bender manufacturers, suppliers, factory, Profile Pipe Bending Machine,

Technical Parameters

CNC Technical Parameters
Model	Unit	CNC18	CNC25	CNC38	CNC50	CNC65	CNC76	CNC90	CNC110	CNC130	CNC168	CNC219	CNC273
Maximum bending capacity	mm	Φ18x1.6	Φ25x2.0	Φ38x1.8	Φ50x2.0	Φ65x2.5	Φ75x2.5	Φ89x2.5	Φ110x5.0	Φ130x5.0	Φ168x16.5	Φ219x16	Φ270x20
Round tube/stainless steel tube	mm	Φ18x0.8	Φ25x1.8	Φ38x1.2	Φ50x1.3	Φ65x1.6	Φ75x1.9	Φ89x1.5	Φ110x2.0	Φ130x2.5	Φ168x4.0	Φ219x14	Φ270x14
Square tube/metal	mm	□15x1.2	□16x2.5	□30x1.5	□40x1.8	□50x2.3	□60x2.5	□75x2.5	□90x2.0	□90x6.0	□110x6.5	□189x14	□200x14
Maximum bend outer diameter for reciprocating(can be customized)	mm	φ10	φ25	φ38	φ50	φ65	φ70	φ70	φ90	φ114	φ114	φ129	φ129
Bending radius	mm	10~80	20~100	25~150	30~230	30~320	40~250	40~250	50~280	80~500	90~500	120~800	130~1000
Bending radius range/ Square tube	mm	15~70	20~87	25~130	30~190	35~210	40~240	45~105	50~300	80~430	90~410	120~801	130~1000
Bending angle range	degree	190	190	190	190	190	190	190	190	190	190	190	190
R1~R2Two-layer R maximum dfference R1-R2	mm	20	50	50	65	75	85	85	100	130	145	170	180
Maximum effective distance	mm	1200	1500	3200	2200	3200	4000	4000	4000	5000	6000	1400	6000
Workbench height (mold center to ground height)	mm	1100	900	1100	1100	1100	1125	1100	1250	1300	1400	1400	1400
Mold center line height	mm	22	30	28	40	50	55	65	80	90	120	165	185
Bending [D.O.B] Speed	deg/sec	220	220	160	105	100	75	75	75	70	38	38	28
Bending(D.O.B\| Sccuracy	degree	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05
Feeding[D.B.B] Speed	mm/sec	2000	2000	1400	1400	200~900	200~900	900	900	900	800	800	600
Feeding (D.B.B.] Accuracy	mm	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05
Transter tube\|P.O.B.) Speed	deg/sec	300	300	300	200	200	200	200	200	200	90	90	90
Transter tube[P.O.B.]Accuracy	mm	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05
Hvdraulic svstem motor	kw	1.7	2.2	2.2	3.8	5.5	11	15	22	22	30x2	45x2+11	55x2+11
Machine width	mm	900	900	900	900	1150	1500	1500	1700	2000	2200	2300	3400
Machine width	mm	1250	1250	1250	1300	1400	1400	1500	2100	2100	2300	2300	2700
Machine length	mm	2600	2900	4300	4300	5800	6800	6800	7000	9000	10000	11000	11500
Machine weight	kg	900	1000	2800	3200	5800	7500	7900	12000	13000	29000	38000	55000

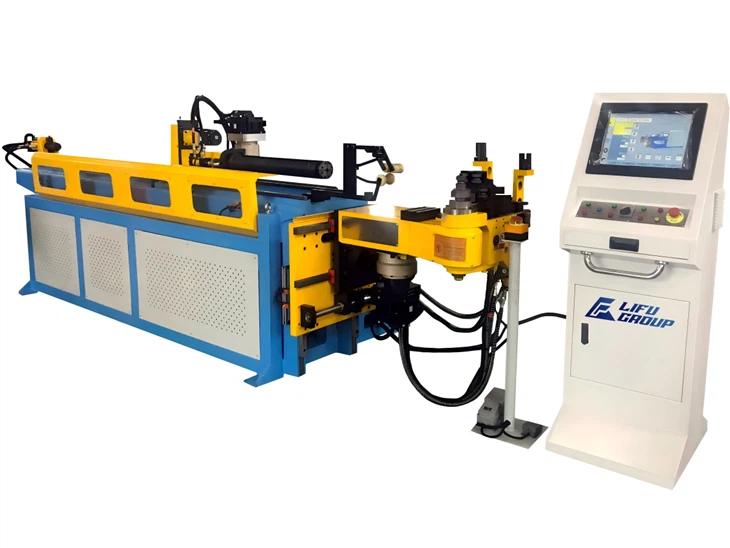

Alloy Pipe Bender
